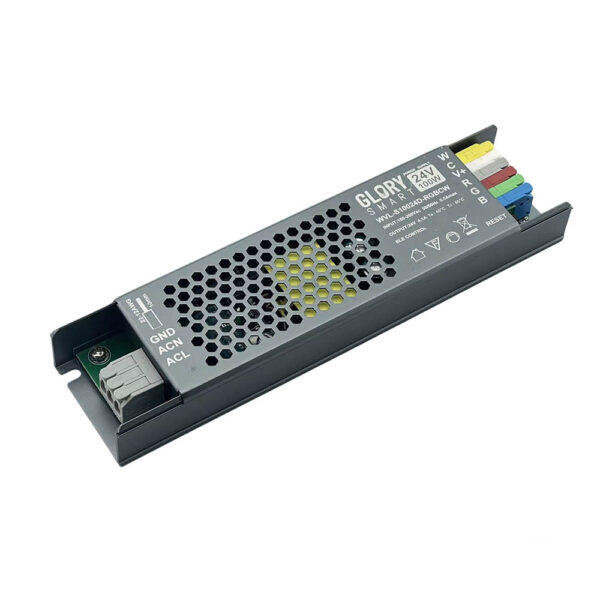

Glorysmart Smart LED Driver — All-in-One Wi-Fi + Bluetooth Dimming Controller & Switch Power Supply

Brand: WELLDRIVER (Zhongshan, China) | Series: Glorysmart Smart Dimming System | Output: 24VDC

💡 What is Glorysmart?
Glorysmart is a professional-grade smart dimming ecosystem designed for lighting manufacturers, distributors, and system integrators. It combines a high-efficiency switch-mode power supply with an advanced wireless control module in a single compact housing — eliminating the need for separate drivers and controllers. The system is built on a proven IoT platform, delivering stable, low-latency communication and enterprise-level reliability for commercial and residential lighting projects.

Key Features & Benefits

🚀 High Performance & Reliability

Delivers full rated power (100W–300W) with a long operational lifespan. Built-in overload protection ensures safety and durability in continuous-duty applications.

🔗 Seamless App Pairing

Simplified wiring design. Bind LED fixtures to the app effortlessly with just three power cycles — no complex setup, no “device not found” errors. Installer-friendly.

🎨 Advanced App Control

Create custom lighting scenes, freely adjust color temperature and brightness, and program automated schedules via the dedicated mobile app — available on both iOS and Android.

🎵 Immersive Music Synchronization

Lights dynamically react to audio from connected speakers and devices. Perfect for entertainment venues, hospitality, and high-end residential mood lighting.

🌍 12-Language App Interface

Built-in support for 12 languages, including 6 major Indian languages (Hindi, Tamil, Telugu, Bengali, Marathi, Gujarati) — designed for global distributors and diverse end-users.

📡 Flexible Connectivity

Works directly via Bluetooth for local control without a Wi-Fi network. Add an optional gateway for full remote-control capabilities, cloud scheduling, and multi-device automation.

Mobile App — Download & Setup

📱 iOS Users: Search “Glorysmart” directly in the Apple App Store. 📱 Android Users: Scan the QR code provided with your product packaging, or contact our sales team for the latest APK download link.

Technical Specifications

Input / Output Parameters

Model	Power	Input Voltage	Output Voltage	Output Current	Dimming Type	Dimensions (mm)
WVL-A10024D-BL-S	100W	180–260VAC	24VDC	4.1A	Single Color	L214 × W50 × H29
WVL-A20024D-BL-S	200W	180–260VAC	24VDC	8.2A	Single Color	L245 × W50 × H29
WVL-A30024D-BL-S	300W	180–260VAC	24VDC	12.3A	Single Color	L298 × W50 × H29
WVL-A10024D-BL-CW	100W	180–260VAC	24VDC	4.1A	CW (CCT)	L214 × W50 × H29
WVL-A20024D-BL-CW	200W	180–260VAC	24VDC	8.2A	CW (CCT)	L245 × W50 × H29
WVL-A30024D-BL-CW	300W	180–260VAC	24VDC	12.3A	CW (CCT)	L298 × W50 × H29
WVL-A10024D-BL-RGBCW	100W	180–260VAC	24VDC	4.1A	RGBCW	L214 × W50 × H29
WVL-A20024D-BL-RGBCW	200W	180–260VAC	24VDC	8.2A	RGBCW	L245 × W50 × H29
WVL-A30024D-BL-RGBCW	300W	180–260VAC	24VDC	12.3A	RGBCW	L298 × W50 × H29

General Specifications

Input Voltage Range: 180–260VAC
Output Voltage: 24VDC constant voltage
Power Options: 100W / 200W / 300W
Dimming Output: Single / CW / RGBCW
Control Protocol: Wi-Fi + Bluetooth LE
Gateway: Optional (for remote/cloud control)
Protection: Overload / Short-circuit
App Languages: 12 (incl. 6 Indian languages)

Smart System Architecture

The Glorysmart smart dimming system is a complete IoT lighting control platform engineered for scalability and ease of deployment:

Local Control (Bluetooth): Pair and control lights directly from a smartphone without any internet connection — ideal for quick installations and demo scenarios.
Remote Control (Wi-Fi + Cloud): With the optional gateway, unlock cloud-based scheduling, multi-room automation, voice assistant integration, and remote device management.
Music Sync Engine: Built-in audio analysis module detects rhythm and frequency in real time, enabling lights to pulse, fade, and color-change in sync with music.
Scene Engine: Create and save unlimited lighting scenes — from warm 2700K reading light to vibrant RGB party modes — and recall them with a single tap.

Ideal Applications

🏨 Hospitality & Hotels

Scene-based lighting control for guest rooms, lobbies, and restaurants. Music sync creates ambient experiences for bars and lounges.

🏠 Smart Homes & Residential

Whole-home lighting automation with scheduling, dimming, and voice control. Perfect for new builds and retrofit projects.

🎉 Entertainment & Events

Dynamic RGB lighting that reacts to music — ideal for clubs, event venues, stage lighting, and experiential retail.

🏢 Commercial & Office

Energy-saving automated schedules, daylight harvesting integration, and centralized control for office buildings and retail spaces.

OEM & Customization Services

We support OEM/ODM customization for distributors and lighting brands, including:

Custom logo printing and private labeling
App interface branding (white-label solution)
Custom firmware for specific dimming curves or protocols
Packaging design tailored to your market

Interested in Wholesale Pricing or Samples?

Contact our international sales team today for a quotation, technical datasheets, or to request a sample unit.

📱 WeChat: +86 13286300652 | 📱 WhatsApp (SEA): +86 19966309210 📧 Email: suki@glory-smart.com | Jay@glory-smart.com (Thailand & SEA) 📸 Instagram: @glorysmartsince2013
