WDMTP10048-TYZigBee
Power: 100W
Input Vol: 200-240VAC
Output Vol:48VDC
Output Current: 2.5A
PF>0.5 Efficiency: 90%
Product Length: 255mm
Function: CCT Dimmable/Controlled by Tuya ZigBee

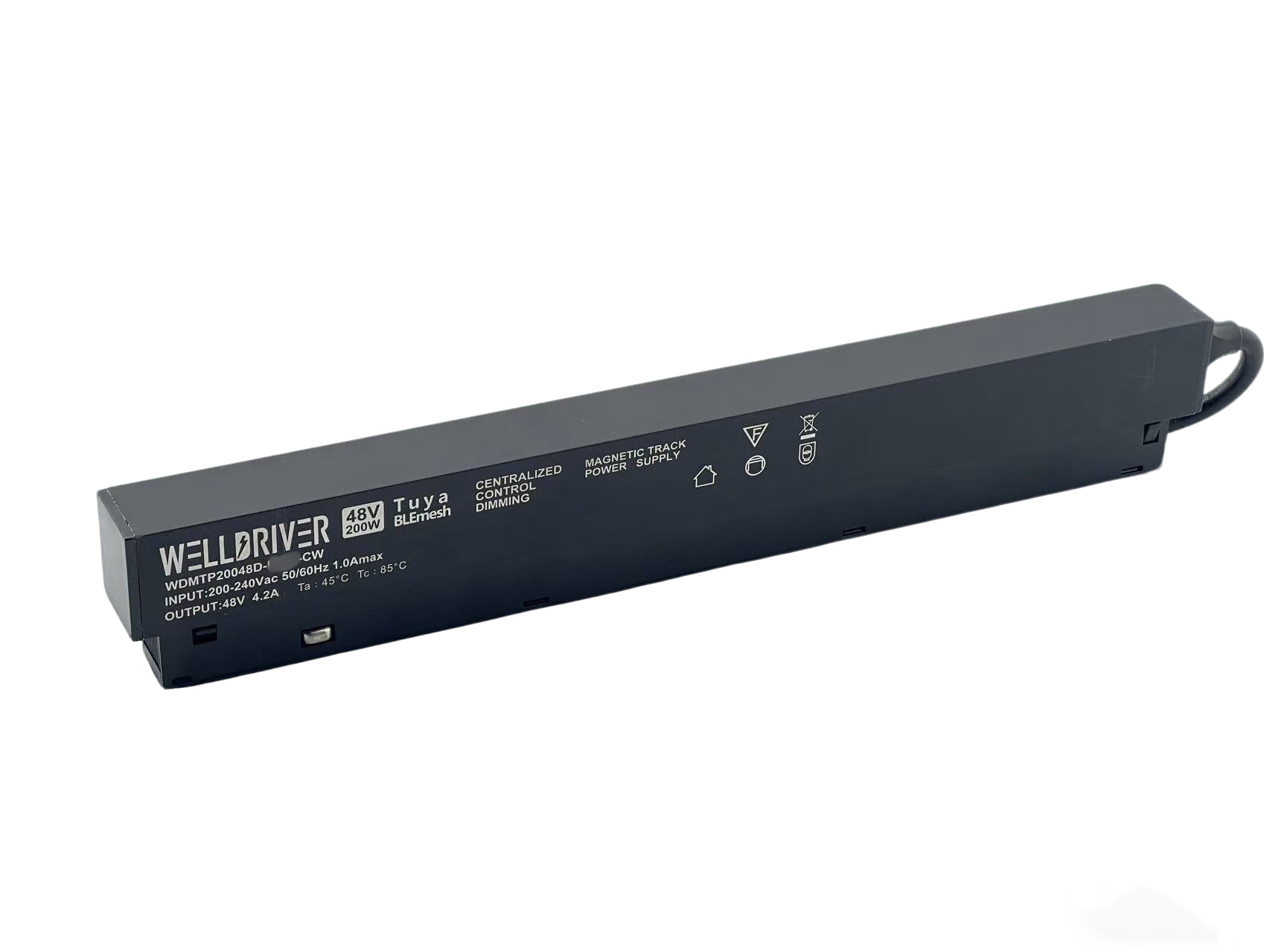

Tuya Zigbee Dual-Color CCT Magnetic Track Light Power Supply
This 48V DC LED driver works with 20-series magnetic track lights. It uses Tuya Zigbee 3.0 for wireless smart control. You can tune color temperature from warm 2700K to daylight 6500K. A Tuya Zigbee hub is required.
Dual-Color CCT Control + Zigbee 3.0
This driver has two channels: cool white (CW) and warm white (WW). You can mix both channels in the Tuya app. This gives you any color temperature from 2700K to 6500K.
Zigbee 3.0 uses a hub. The hub talks to all drivers and routes commands. As a result, the network stays stable even with 200 or more lights.
- CW + WW dual channel — stepless CCT from warm to daylight
- Hub-based control — Tuya Zigbee coordinator required
- 3-wire only — just power in, no Dim+/Dim- needed
Technical Specifications
- Model NumbersWDMPT10048D-TYZB (CCT)
WDMPT20048D-TYZB (CCT) - Input Voltage200–240V AC
- Output Voltage48V DC
- Power Factor (PF)≥0.5
- Power100W / 200W
- Control ProtocolTuya Zigbee 3.0
- Color ModeCCT Tunable (CW + WW)
- CCT Range2700K – 6500K
- Wiring3-wire
- GatewayRequired (Tuya Zigbee Hub)
- Application20-Series Magnetic Track Rails
- Warranty3 Years
Product Dimensions
100W Model
255 × 22 × 45 mm
Compact design for tight spaces.
200W Model
300 × 22 × 45 mm
Balanced size for most projects.
Key Features
Designed for reliable smart lighting in larger projects.
Engineered Circuit
Senior engineers designed this circuit. It uses quality parts for stable, long-term performance.
Energy Efficient
The PCB design cuts energy waste. It runs cooler and lasts longer.
Secure Locking
A safety lock buckle holds the driver in place on 3-wire magnetic tracks.
CW + WW Dual-Channel
Two channels drive cool and warm white together. The mix stays clean and even.
CCT 2700K–6500K
Slide from cozy warm to bright daylight in the app. No extra hardware needed.
Zigbee Hub Control
A Tuya hub routes commands to every driver. Voice and cloud work out of the box.
Compare All Protocols
Pick the right driver for your project. Here is how they stack up.
| Feature | BLE Mesh | Zigbee (This) | Triac | 0-10V | DALI |
|---|---|---|---|---|---|
| Color | CCT Tunable | CCT Tunable | Single | Single | Single / CCT |
| CCT Range | 2700K–6500K | 2700K–6500K | — | — | Depends |
| Control | Wireless BLE | Wireless Zigbee 3.0 | Wired phase-cut | Wired analog | Wired digital |
| Wiring | 3-wire | 3-wire | 3-wire | 4-wire | 4-wire |
| Phone Direct | Yes (no hub) | No (hub required) | No | No | No |
| Price Level | Lower wireless | Mid-High wireless | Mid | Lowest | Highest |
| Best For | Shops, B&B | Hotels, offices, 50+ lights | Retrofit | Commercial | Large projects |
Frequently Asked Questions
How does dual-color CCT control work?
The driver has two internal channels: cool white and warm white. In the Tuya app, you slide to mix both. This gives you any temperature from 2700K (warm) to 6500K (daylight). Both brightness and color temperature adjust at the same time.
Do I need a hub for Zigbee?
Yes. Tuya Zigbee 3.0 needs a Tuya Zigbee hub. The hub routes commands and keeps the mesh stable. Without it, the driver will not pair.
How is Zigbee different from BLE Mesh?
Both offer CCT control. BLE Mesh is cheaper and works phone-direct. Zigbee needs a hub but supports 200+ lights with self-healing routing. Zigbee suits hotels and offices. BLE Mesh suits smaller smart projects.
How many wires do I need?
Just 3 wires: Line, Neutral, and Earth (where required by local code). No Dim+ or Dim- control wires. This saves installation time and cost.
What track systems work with this driver?
It fits universal 20-Series magnetic track rails. The 3-wire locking system keeps it secure.
What warranty do you offer?
We provide a 3-year warranty. It covers 100% full power output and long-term reliability.
